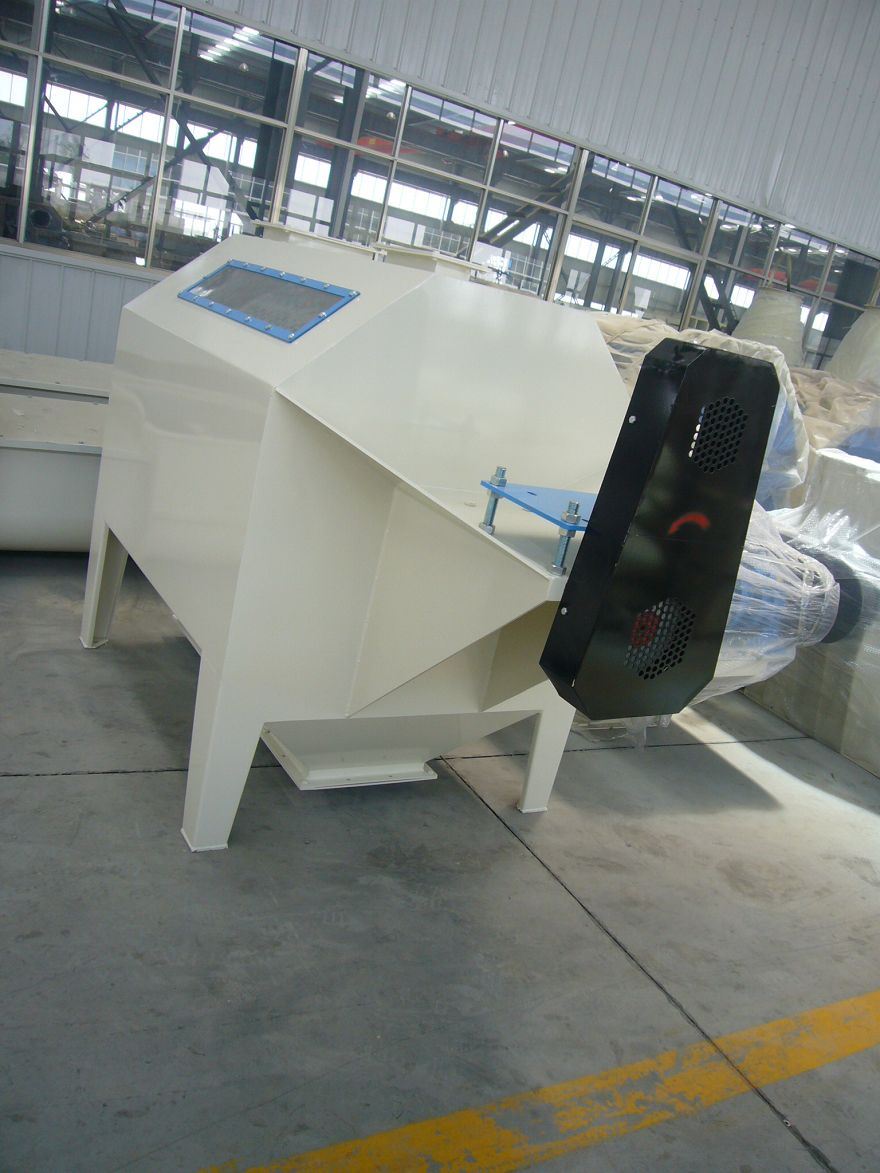

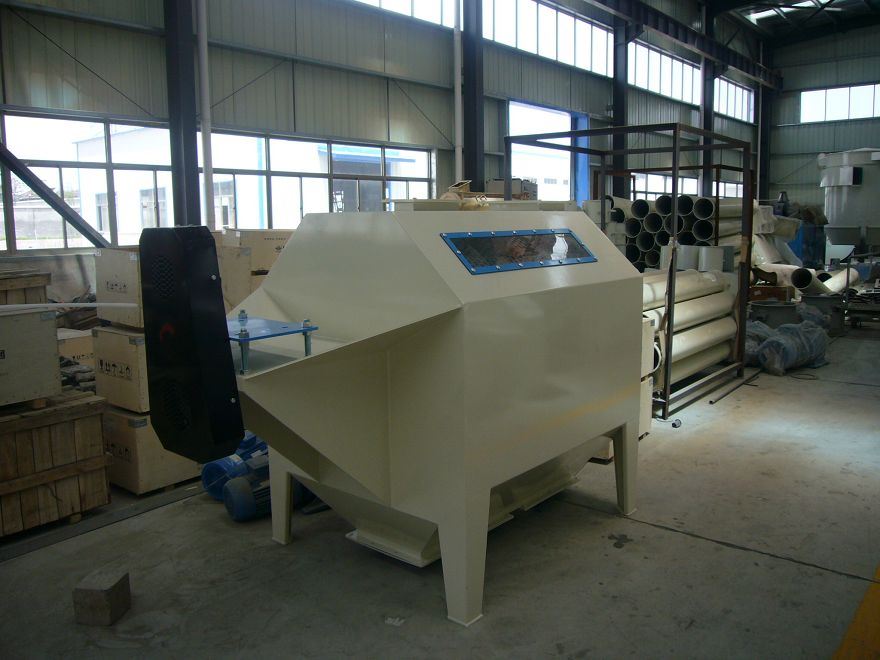

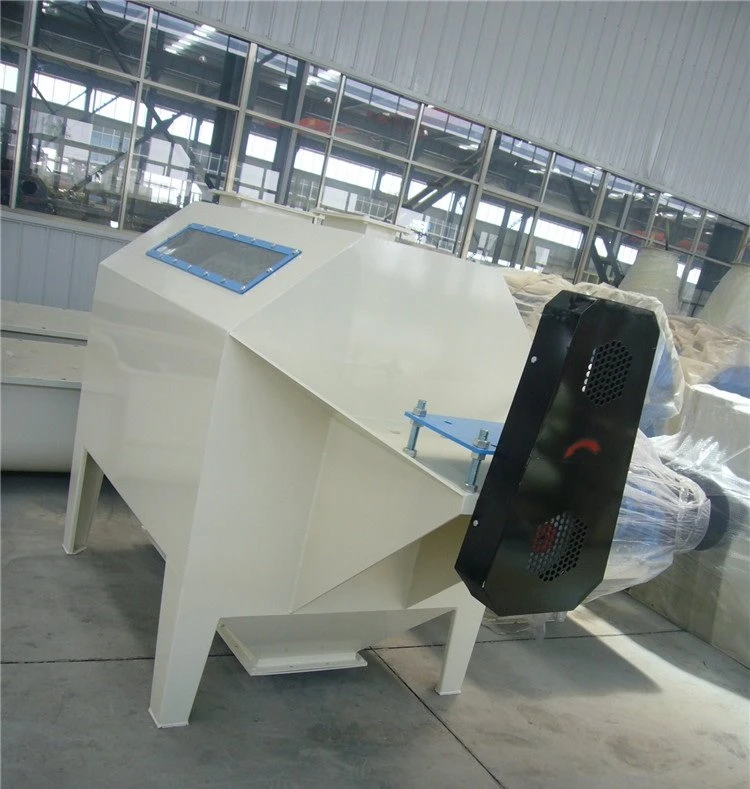

Poultry feed pre-cleaner
Simple structure
Ease to clean and maintain.
Have a aspiration system for assistant cleaning.
Specialized for powdery material cleaning in compound feed mills
SCQZ series fine material conic pre-cleaner is mainly used for pre-cleaning powdery auxiliary materials in compound feed mill. It can effectively break or remove the agglomerated blocks as well as large impurities such as straw, hemp rope, sheet paper, stone block and etc., so as to protect the subsequent machines and equipments in the process system from damage. This machine can also be applied after mixing process to sift and remove the caking bock from mixed mash, so as to ensure the quality of compound feed.
Characteristics
This fine material conic pre-cleaner is characterized by high output, good cleaning effect, low power consumption, simple structure, small floor area and etc.
The equipment is complete with an access door, which is convenient for routine repair and maintenance, as well as for replacement of the sieve drum.
Appropriate sieve apertures can be selected as per the property of material, so as to get the optimum separation effect.
Working conditions
Material properties:
Pellet to be treated: maximum width <>
Bulk density: {{0}}.5—0.8 t/m3
Moisture content: not exceed 18％
Temperature: not exceed 90 degree
Physical environment
Temperature: not exceed 45 degree
Humidity: not exceed 75 percent
Height about sea level: not exceed 1000M
The working voltage should be stable and deviation not more than 5 percent
Working principle
After conveyed into the feeding hopper,the material to be treated is fed into the sieve drum forced by the feeding screw, the agglomerated in it is crushed by impact of high-speed rotating beaters of the rotor,and at the same time, the powdery material makes a circumference movement together with the beaters around inside surface of the sieve drum under the promotion of the beaters. Under the action of centrifugal force, the powdery material with particles less than the apertures pass through the apertures quickly and is discharged from the bottom outlet. The large impurities with sizes larger than the apertures move to their outlet under the action of the beaters and finely discharged from the sieve
Technical parameters
Model | SCQZ605080A | SCQZ9080110A |
Capacity(T/h) | 10-15 | 25-30 |
Power(Kw) | 5.5 | 11 |
